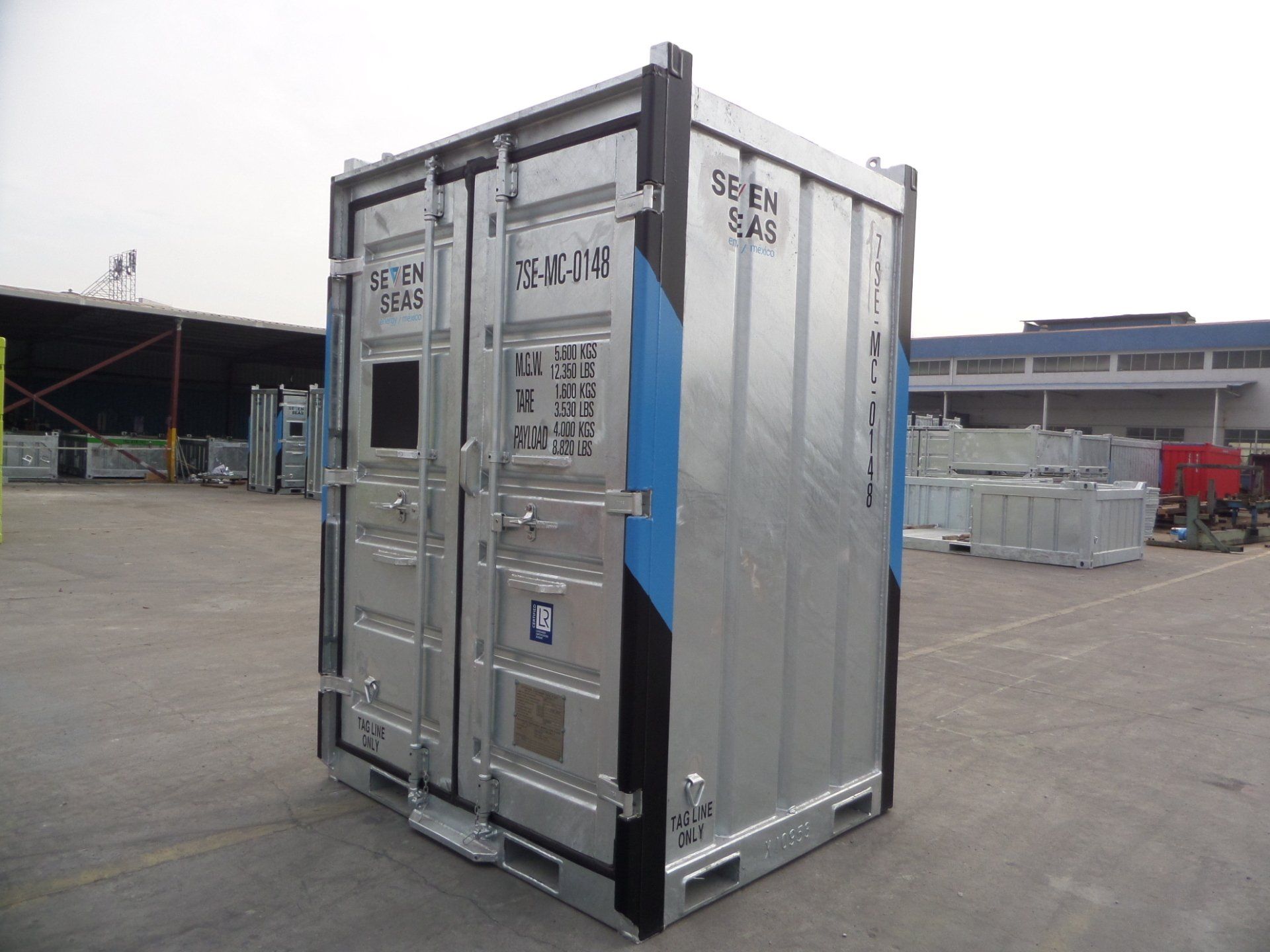

10ft Dry Goods Cargo Carrying Unit
10ft Dry Goods Cargo Carrying Unit
Rigtrans’ own range of Dry Goods Cargo Carrying Units is designed, manufactured and certified to DNVGL-ST-E271 (DNV 2.7-1), EN12079 and ISO10855. 10ft, 20ft and 40ft units are also certified
to ISO1496/CSC and ISO6346. DNV -GL certified sling sets can be supplied.

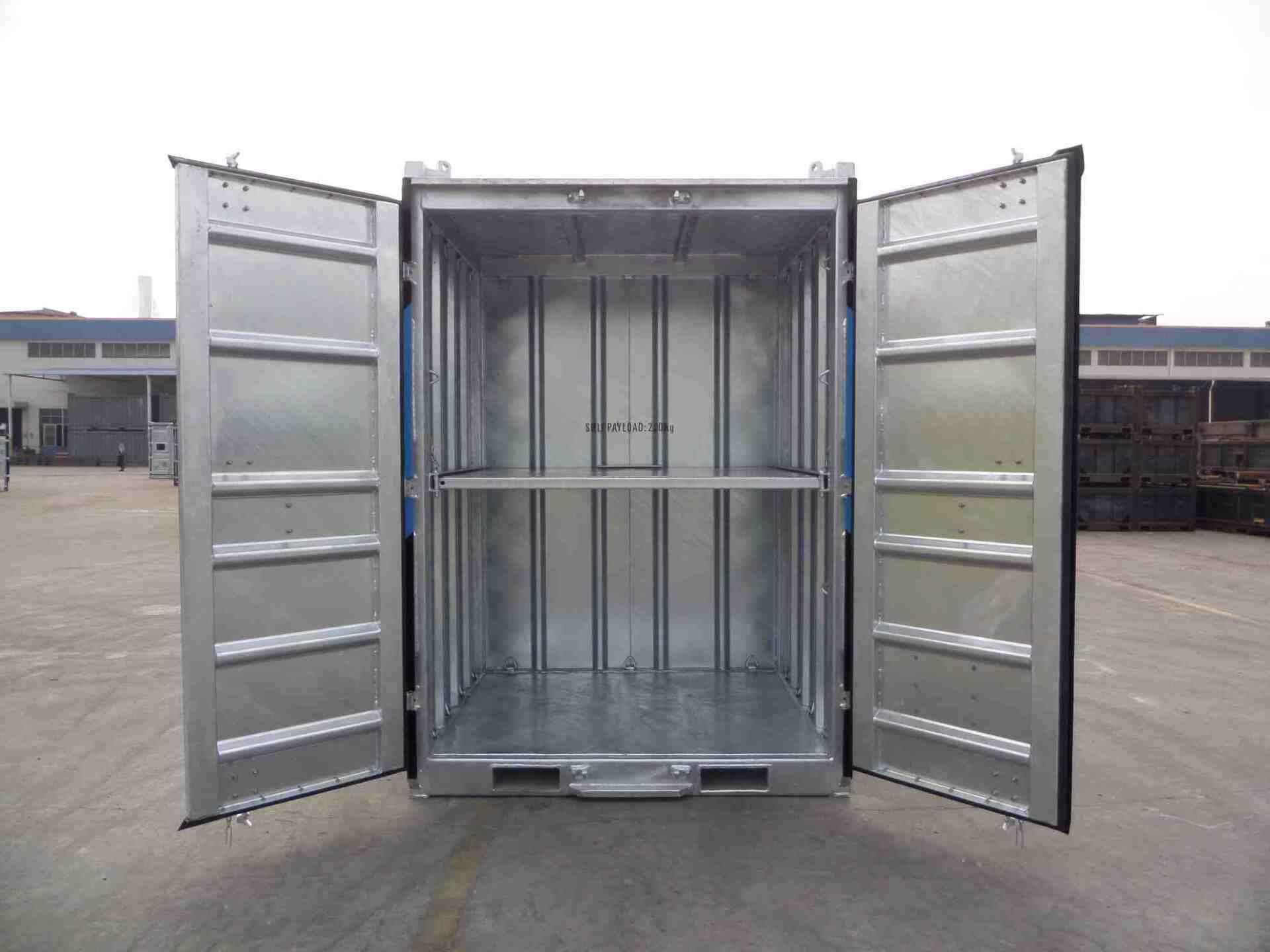

To make for efficient land- based depot operation, all model types are fitted with fork lift pockets and the CCUs can be multi stacked with their slings fitted. Internally, a range of cargo lashing points is provided to ensure that all types of cargo can be secured. Options include ventilation, pairs of double end doors, end and side doors, variations in height and payload. For delivery, 10ft units can be paired to create a 20ft ISO module enabling delivery by containership.
Brief Specifications
Ref: 10DG-SEVEN-200716
| External dimensions: | 2,991mm x 2,438mm x 2,591mm (high) 10’0” x 8’0” x 8’6” (nominal) |
|---|---|
| Internal dimensions: | 2,804mm x 2,270mm x 2,243mm (high) 9’2” x 7’5” x 7’4” |
| Cubic capacity: | 14.3m³, 505ft³ |
| Tare weight: | 2,200kgs, 4,850lbs. |
| Payload: | 7,800kgs, 17,200lbs. |
| Maximum Gross Weight: | 10,000kgs, 22,050lbs |
| Features: | Corrugated or flat panel design, hot dipped galvanised finish |
| Internal fittings: | A wide range of cargo lashing point is provided. |
| Certification: | DNVGL-ST-E271 (DNV2.7-1), ISO10855, ISO1496/CSC |
