New Offshore Equipment available ex-works
17 November 2021
New Offshore Equipment available ex-works
Rigtrans and SHPI offer a stock of new CCUs available for purchase. The units are located at the factory in Jiangmen, Guangdong Province, China. Some units have been built and painted to undercoat standard allowing buyers to choose a top coat colour scheme. Some models have been fully painted in a popular top coat colour. Our listing shows details of the two options. The modules which form the base units for workshops, rigging lofts and dog houses have been built to the shell format only.
Clients can specify from a wide range of options the fit out of these units. For further details of design ideas please visit https://www.rigtrans.com/workshops-and-rigging-lofts.
Additional information for design options can be provided including general arrangement drawings and detailed specifications. Please contact sales@rigtrans.com to discuss your requirements.
Rigtrans/SHPI Stock list - all DNV 2.7-1 certified
| Type | Quantity | External Dimensions (mm) | External Dimensions (nominal) (ft) | Tare weight (kgs) | Tare weight (lbs) | Payload (kgs) | Payload (lbs) |
|---|---|---|---|---|---|---|---|

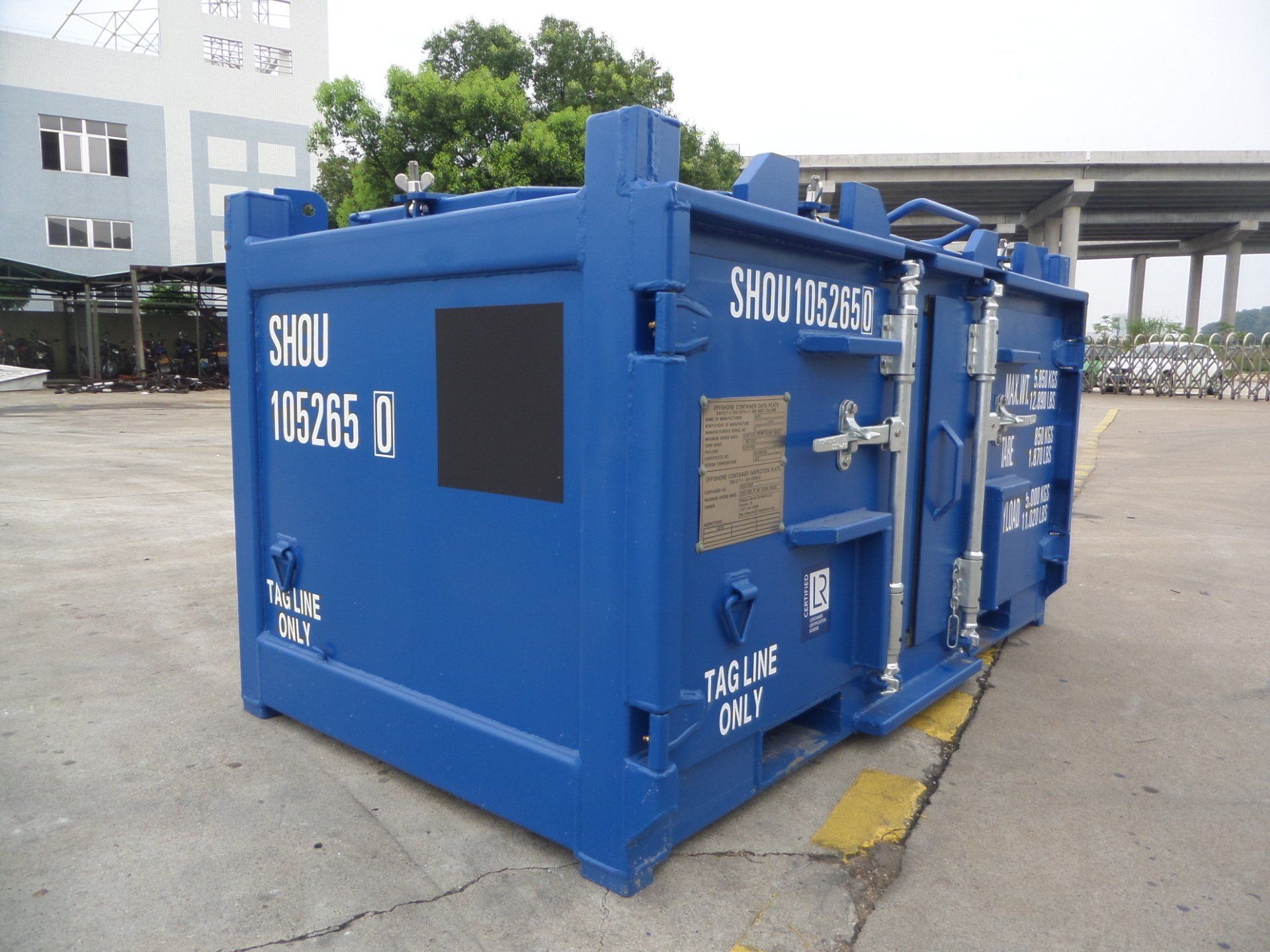

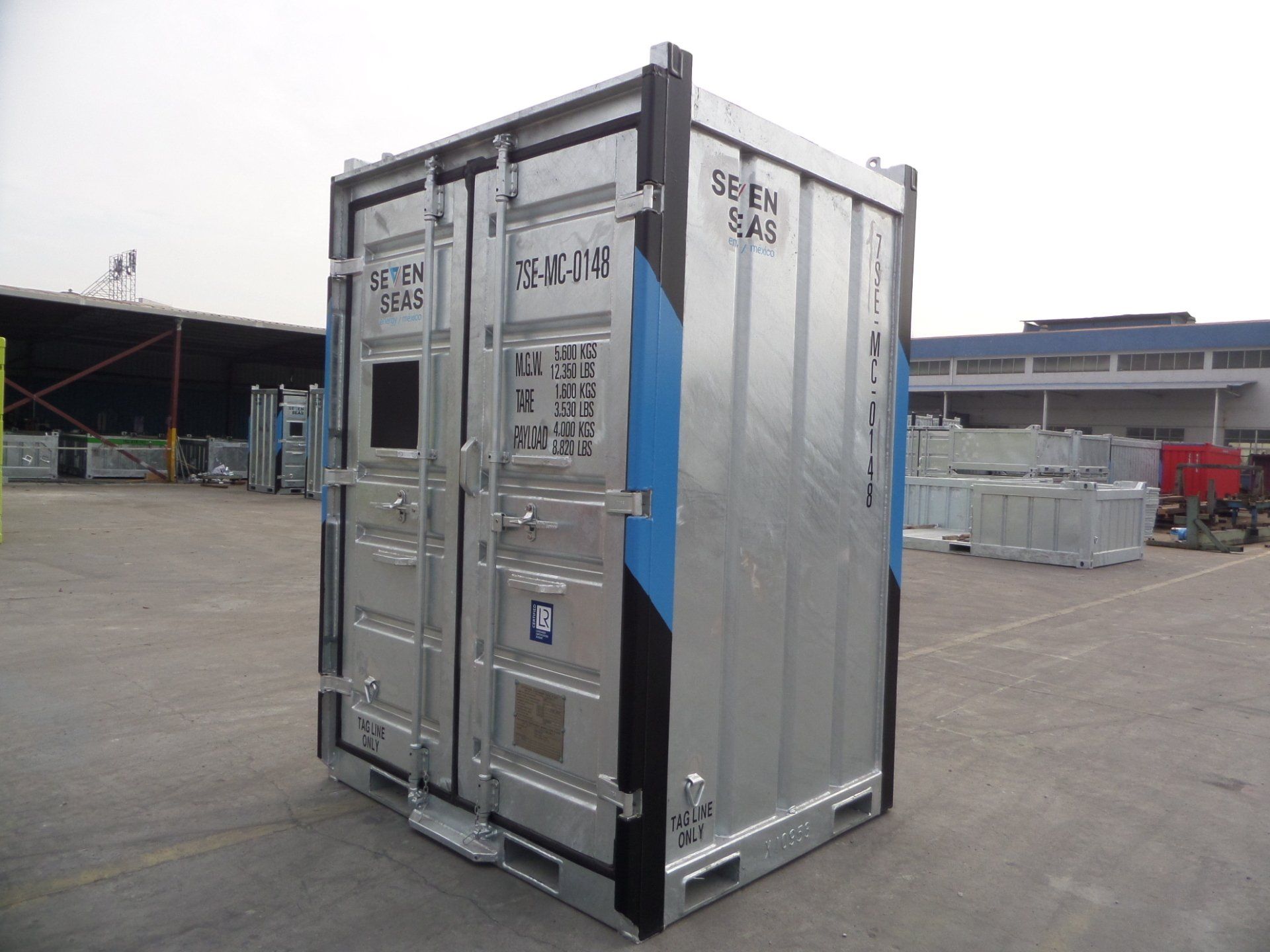

| Mini container/pallet box (with cargo net and mid shelf) | 10 | 1662 x 1904 x 2770 (high) | 6'2" x 5'5" x 9'1" (high) | 1,600 | 3,530 | 4,000 | 8,820 |

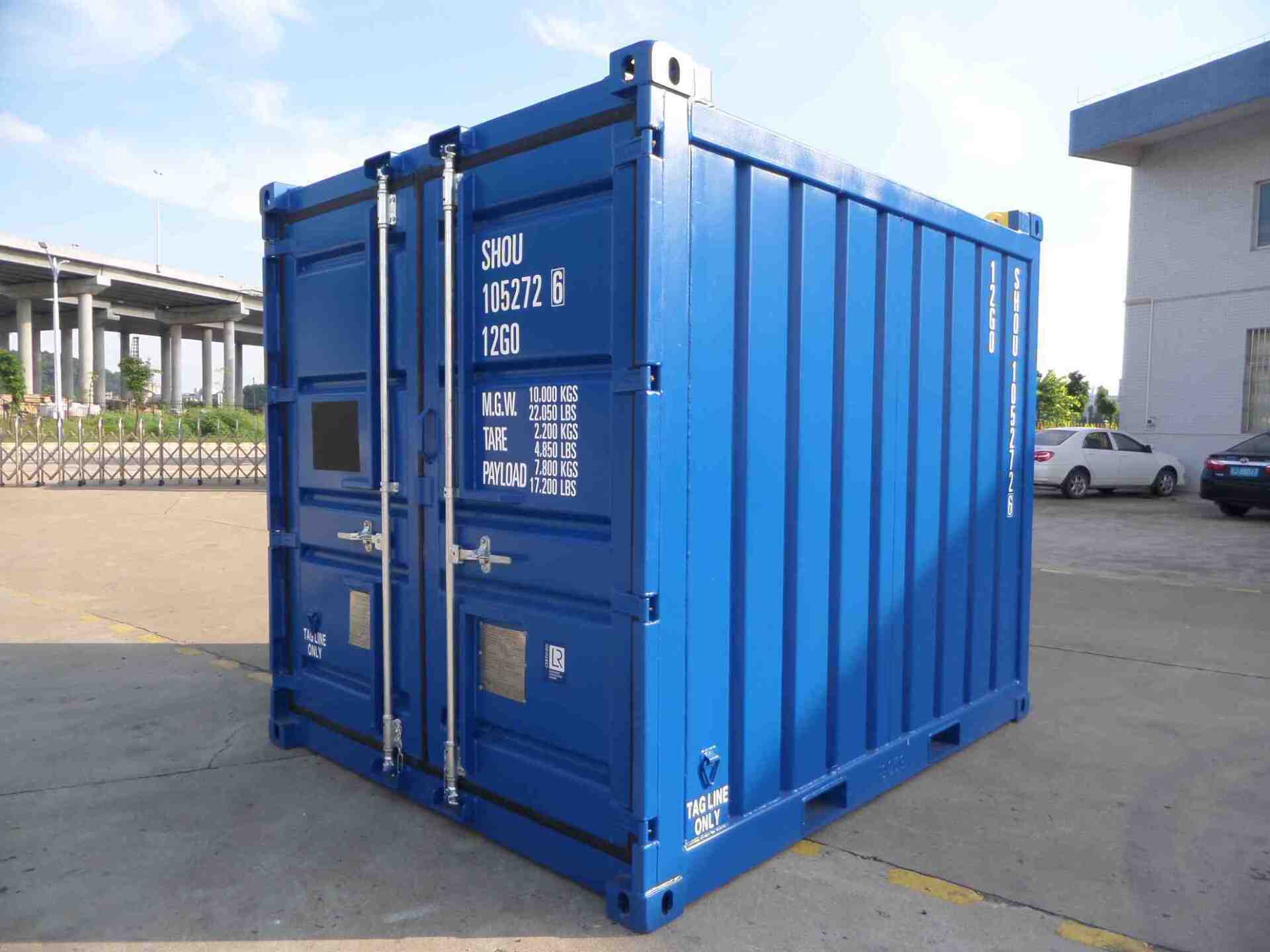

| 10ft Dry goods ( corrugated panel ) ISO/CSC | 20 | 2991 x 2438 x 2591 (high) | 10'0" x 8'0" x 8'6" (high) | 2,200 | 4,850 | 7,800 | 17,196 |

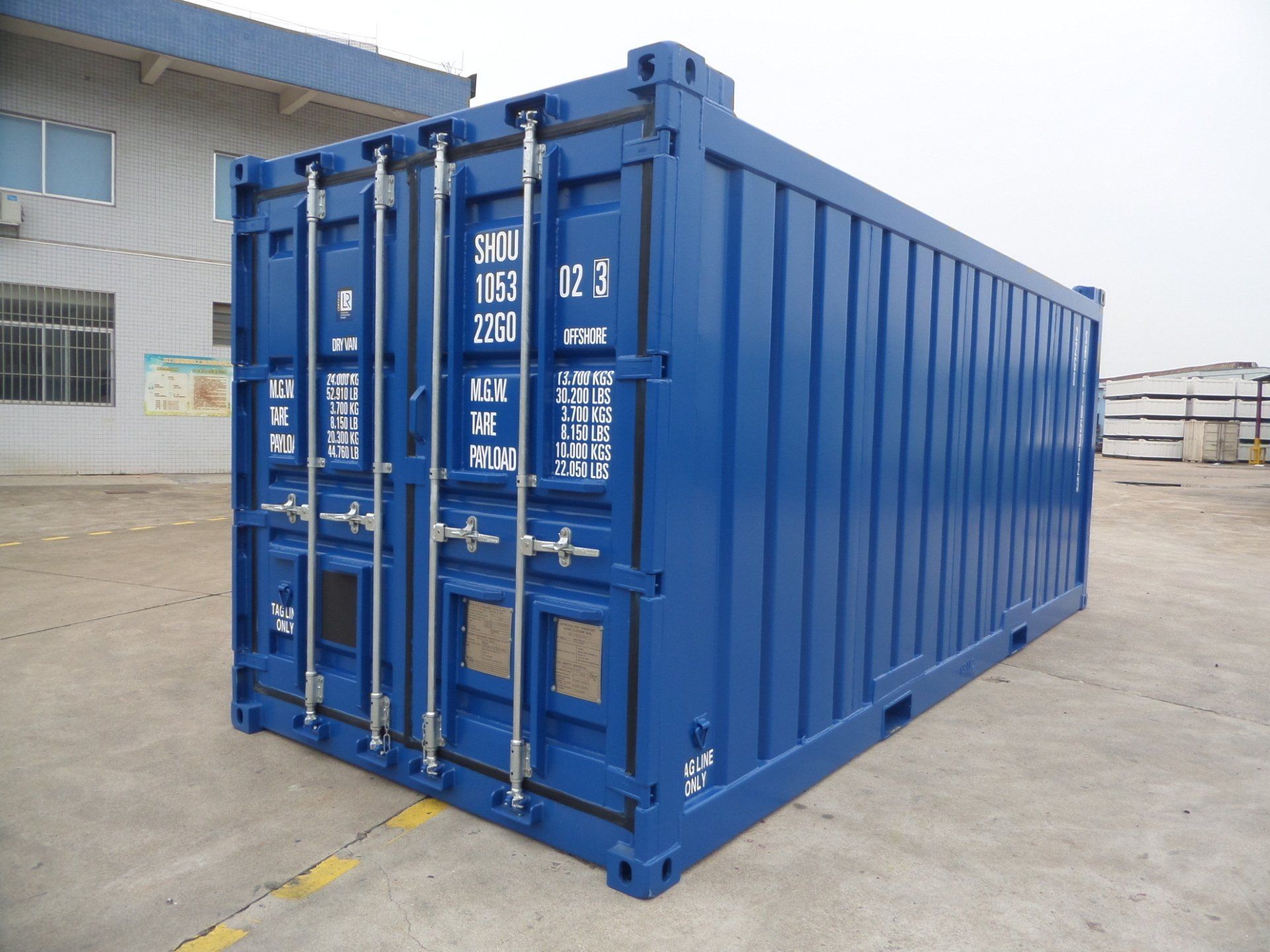

| 20ft Dry Goods (corrugated panel) ISO/CSC | 6 | 6058 x 2438 x 2591 (high) | 20'0" x 8'0" x 8'6" (high) | 3,700 | 8,160 | 10,000 | 22,050 |

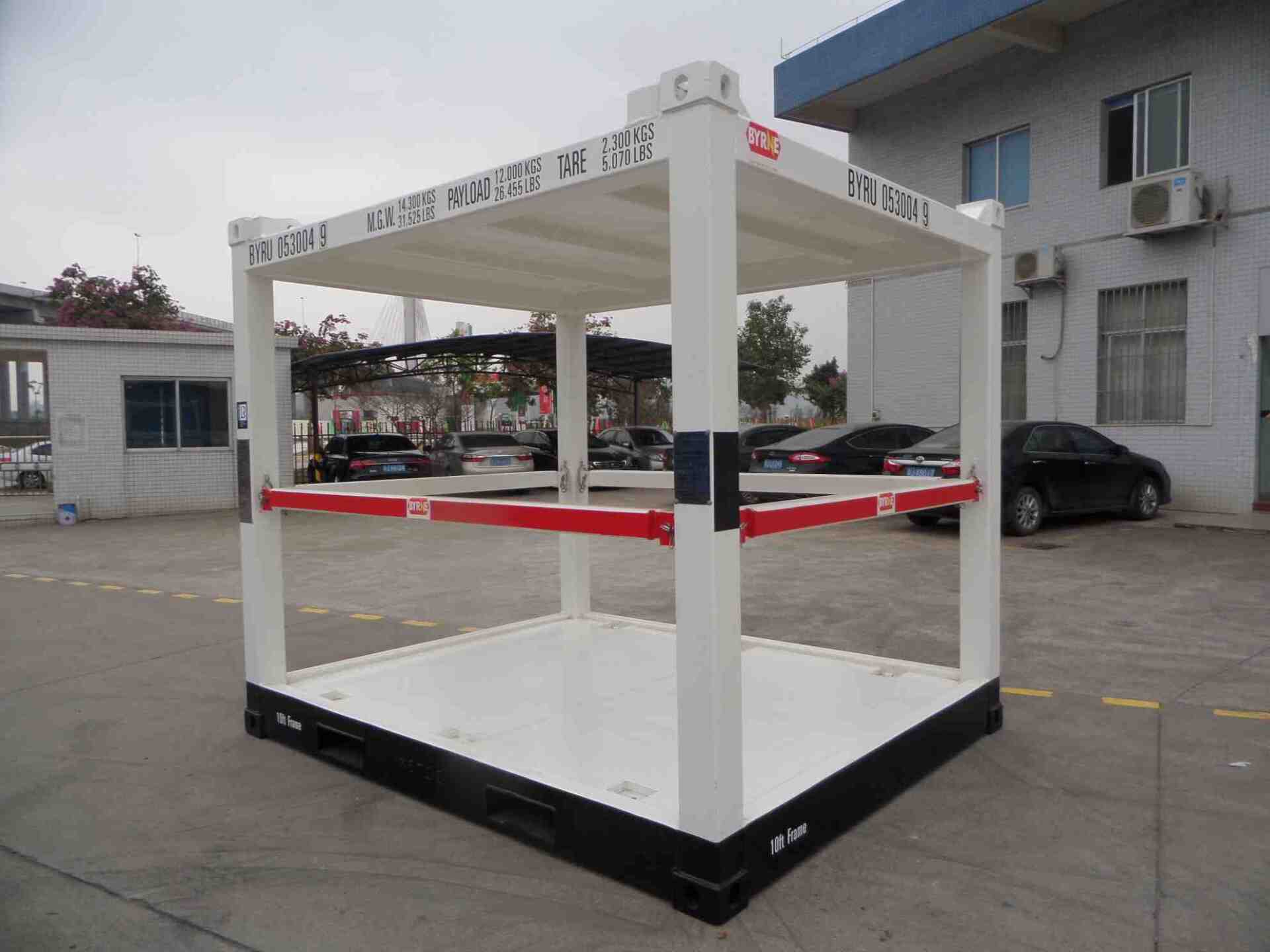

| 10ft lifting frame (fixed roof) ISO/CSC | 9 | 2991 x 2438 x 2591 (high) | 10'0" x 8'0" x 8'6" (high) | 2,300 | 5,070 | 12,000 | 26,455 |

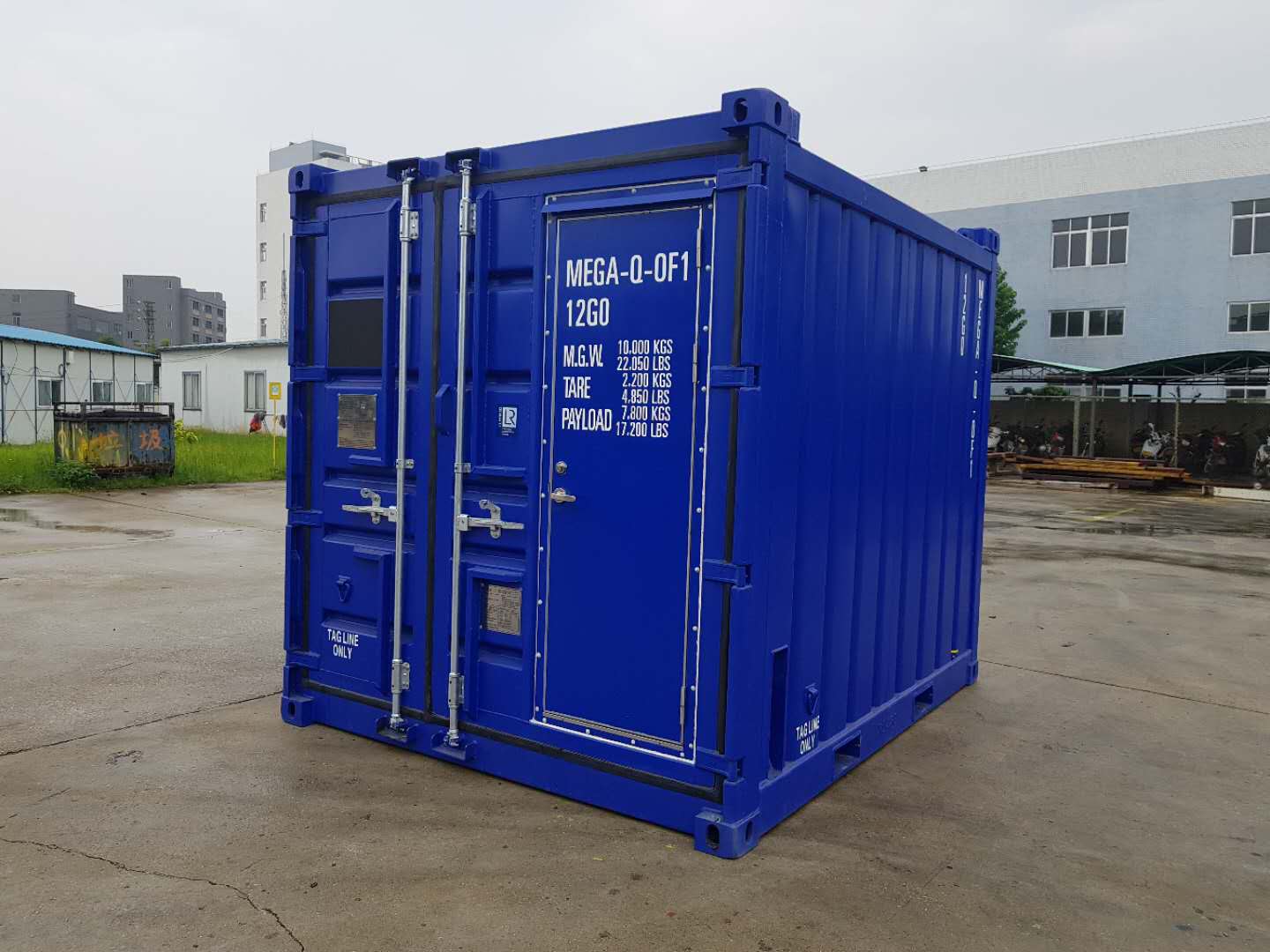

| 10ft workshop (embedded personnel door) ISO/CSC | 9 | 2991 x 2438 x 2591 (high) | 10'0" x 8'0" x 8'6" (high) | 2,200 | 4,850 | 7,800 | 17,200 |

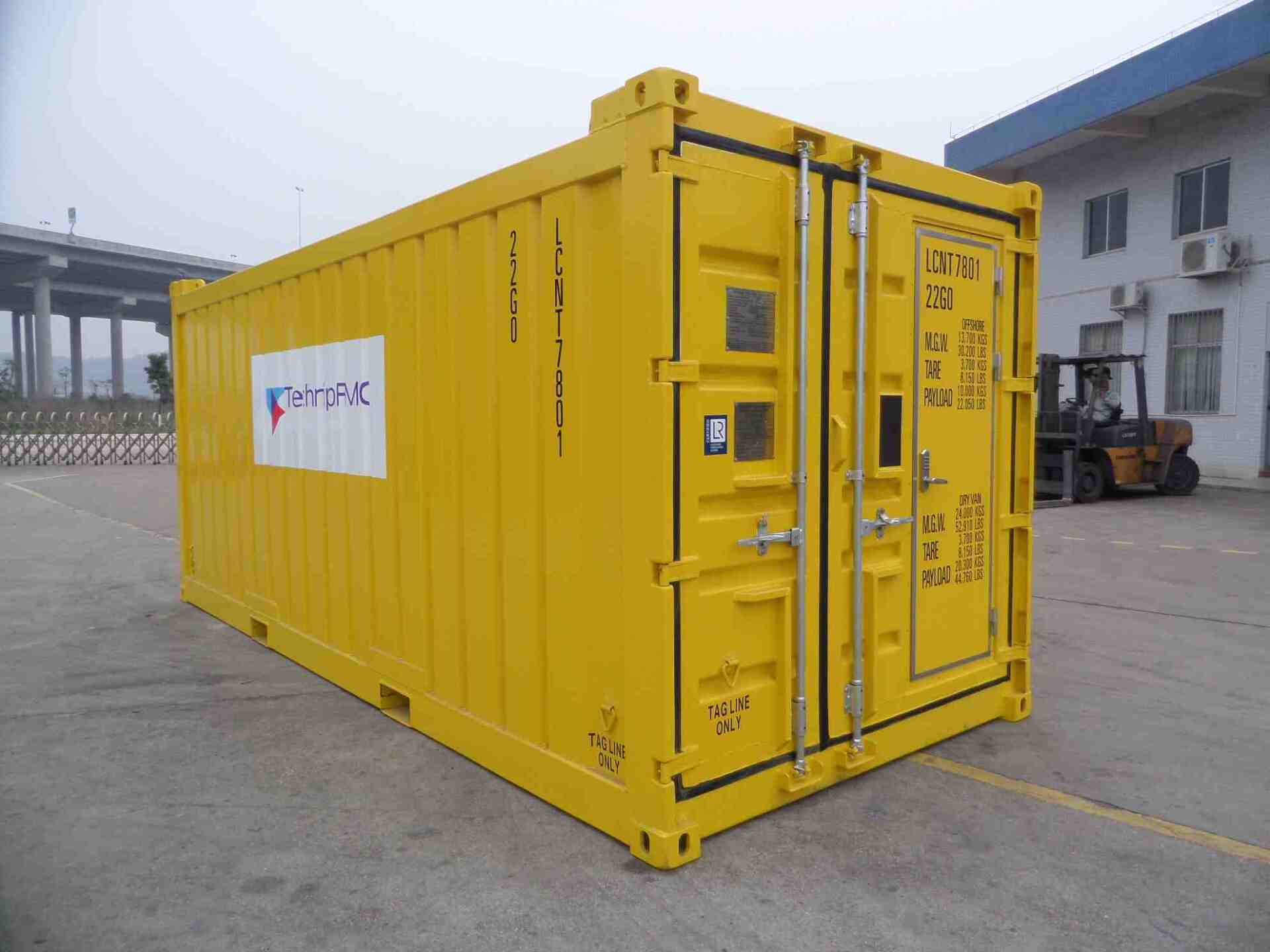

| 20ft workshop (embedded personnel door) ISO/CSC | 2 | 6058 x 2438 x 2591 (high) | 20'0" x 8'0" x 8'6" (high) | 3,700 | 8,160 | 10,000 | 22,050 |

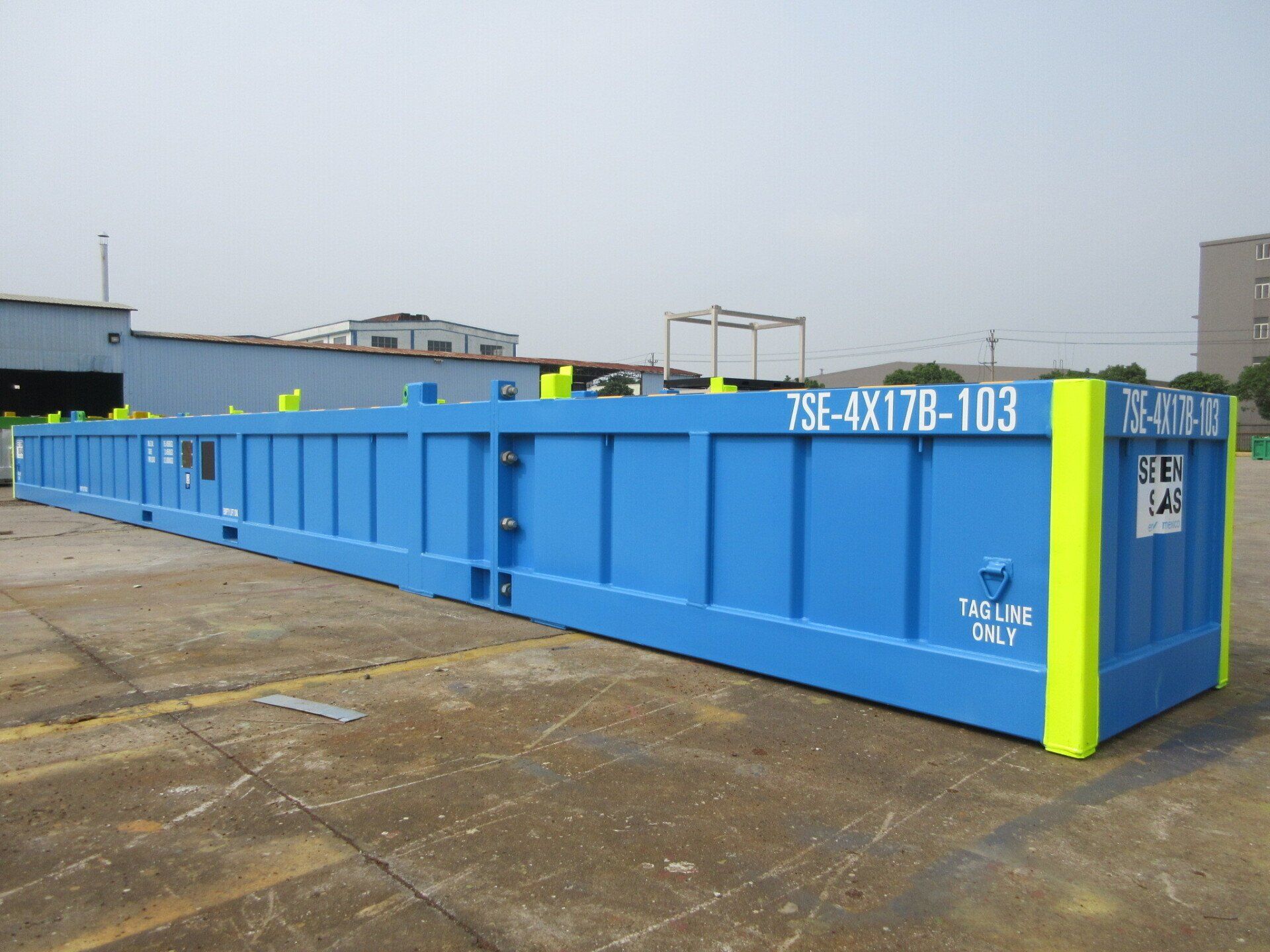

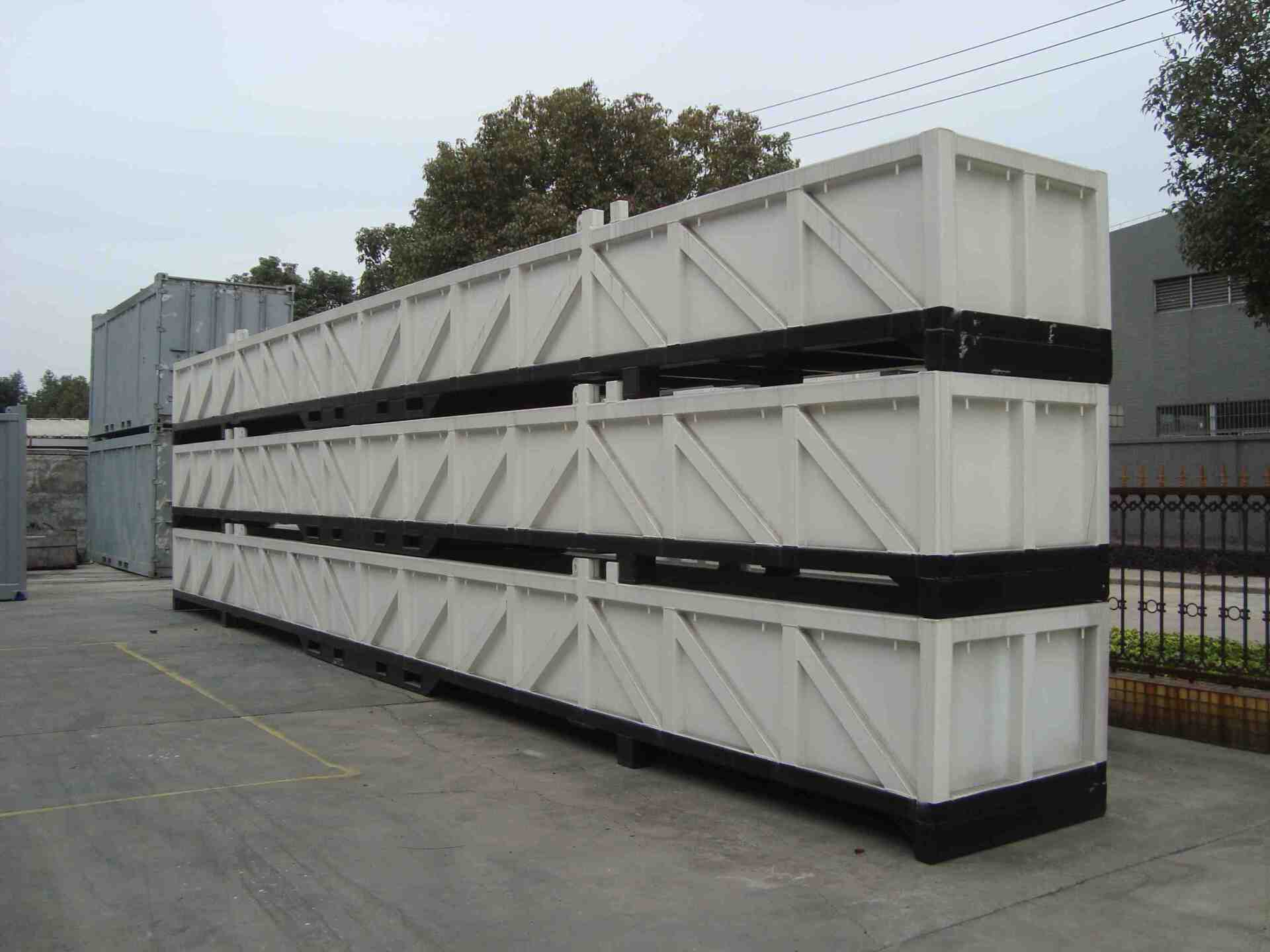

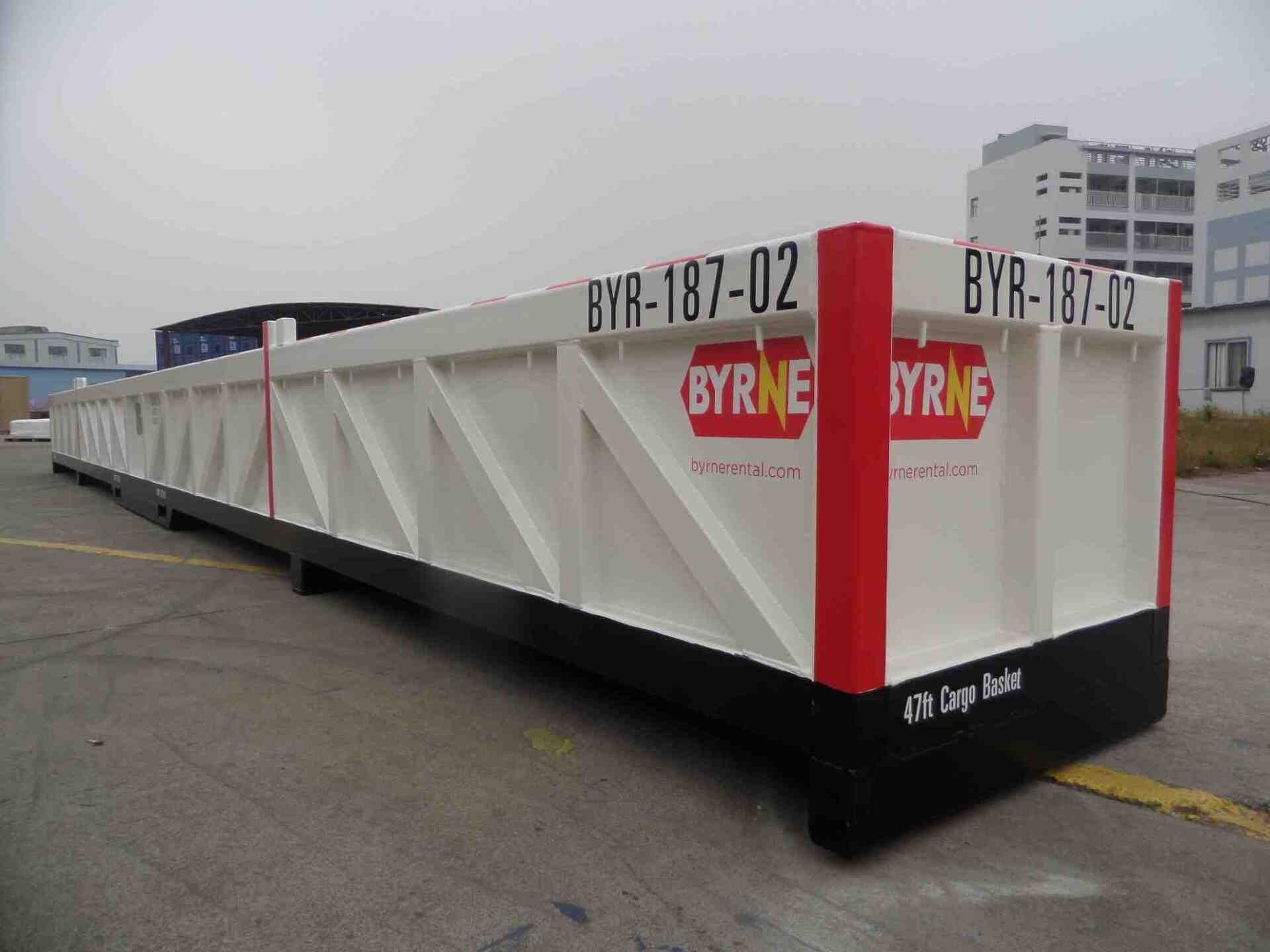

| 47ft (14.3m) cargo basket (bolted type) | 2 | 14300 x 1200 x 1150 (high) | 46'10" x 3'11" x 3'9" (high) | 3,450 | 7,610 | 12,000 | 26,450 |

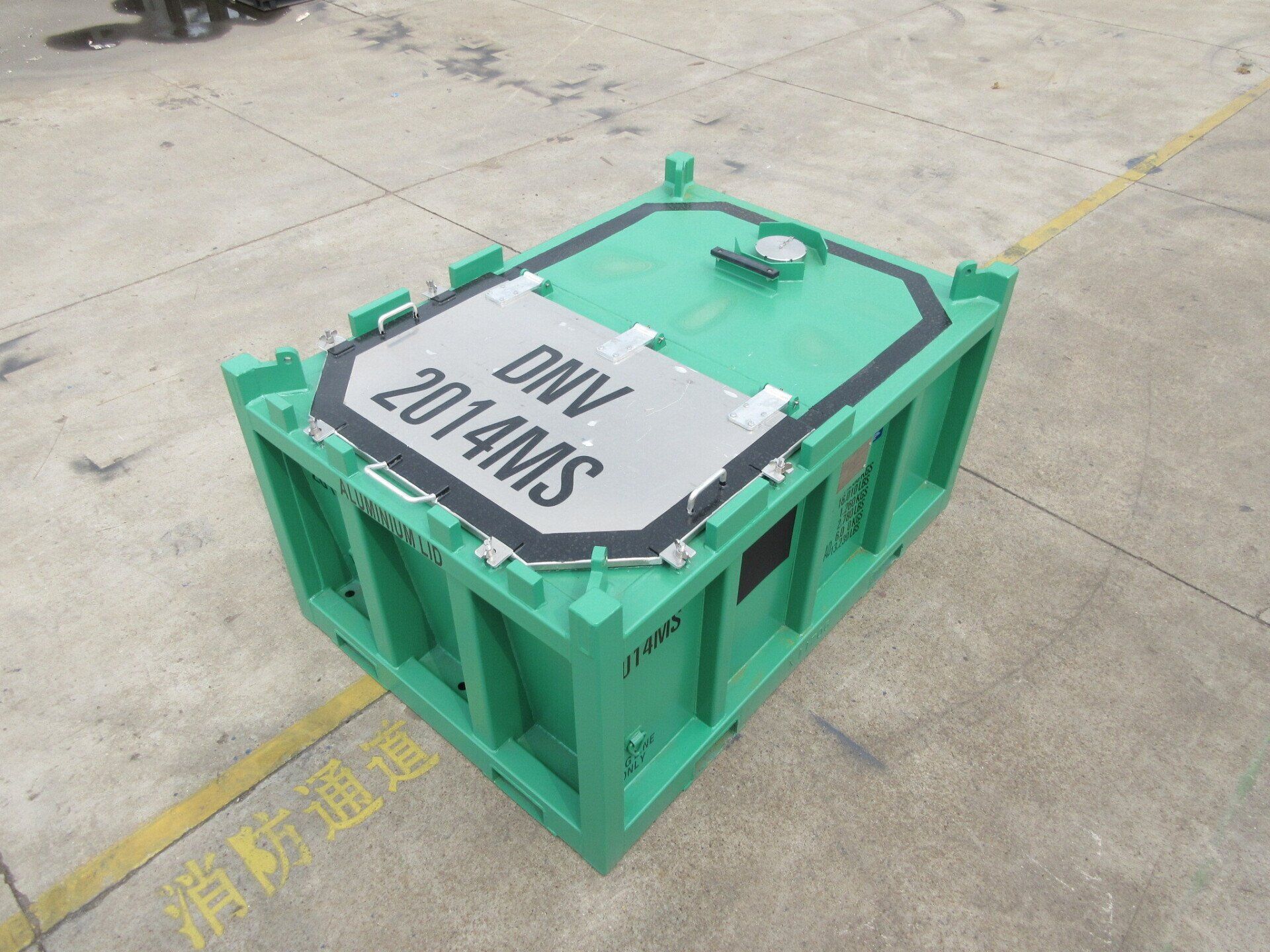

| 7 Tonnes Mud Cuttings Skip - green top coat | 30 | 2400 x 1700 x 1280 (high) | 7'10" x 5'6" x 4'2" (high) | 1,260 | 2,780 | 6,000 | 13,230 |
| 6ft / 2m tool basket - blue top coat | 1 | 2000 x 1196 x 1138 (high) | 6'6" x 3'11" x 3'8" (high) | 850 | 1,870 | 5,000 | 12,890 |

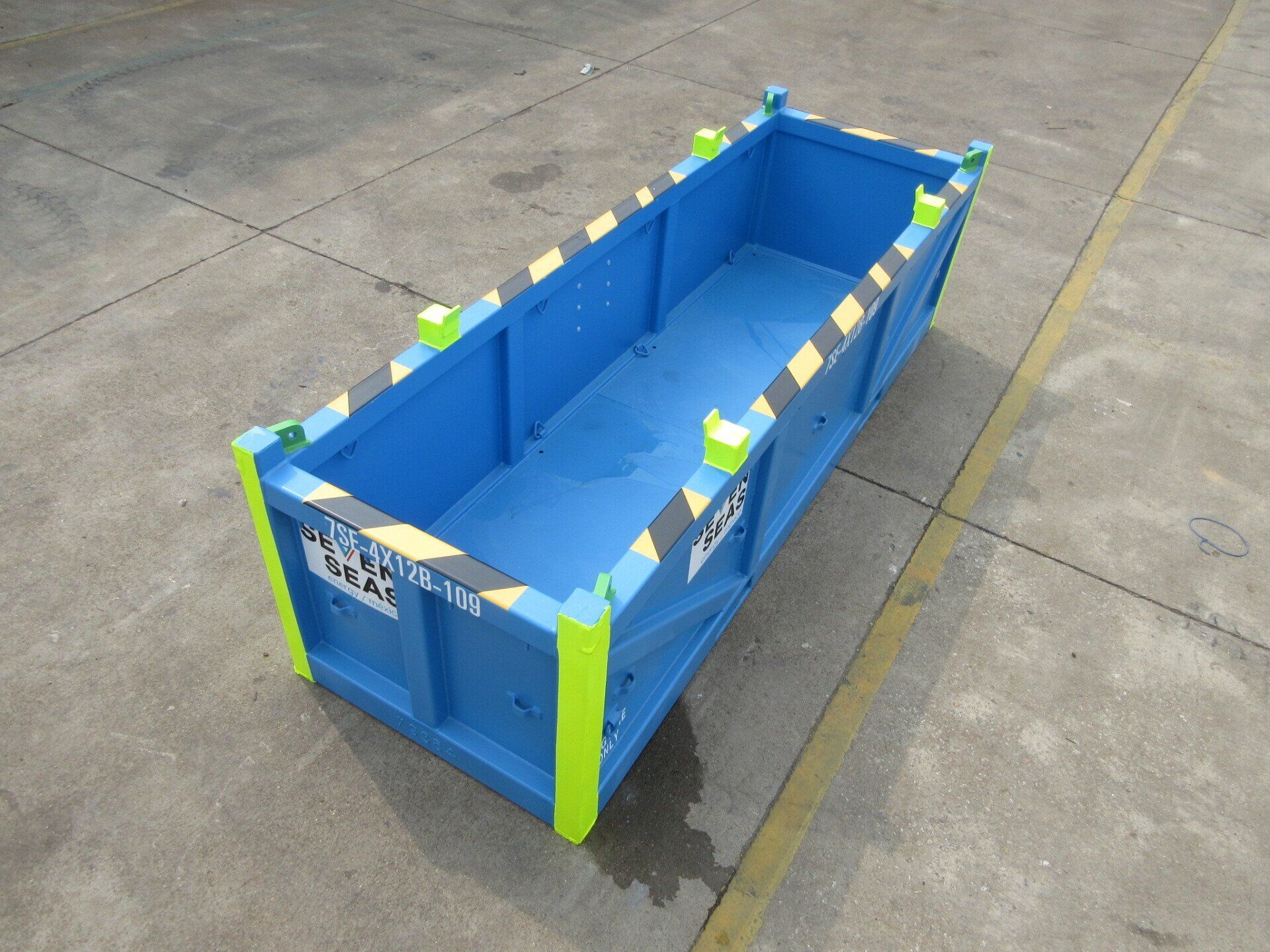

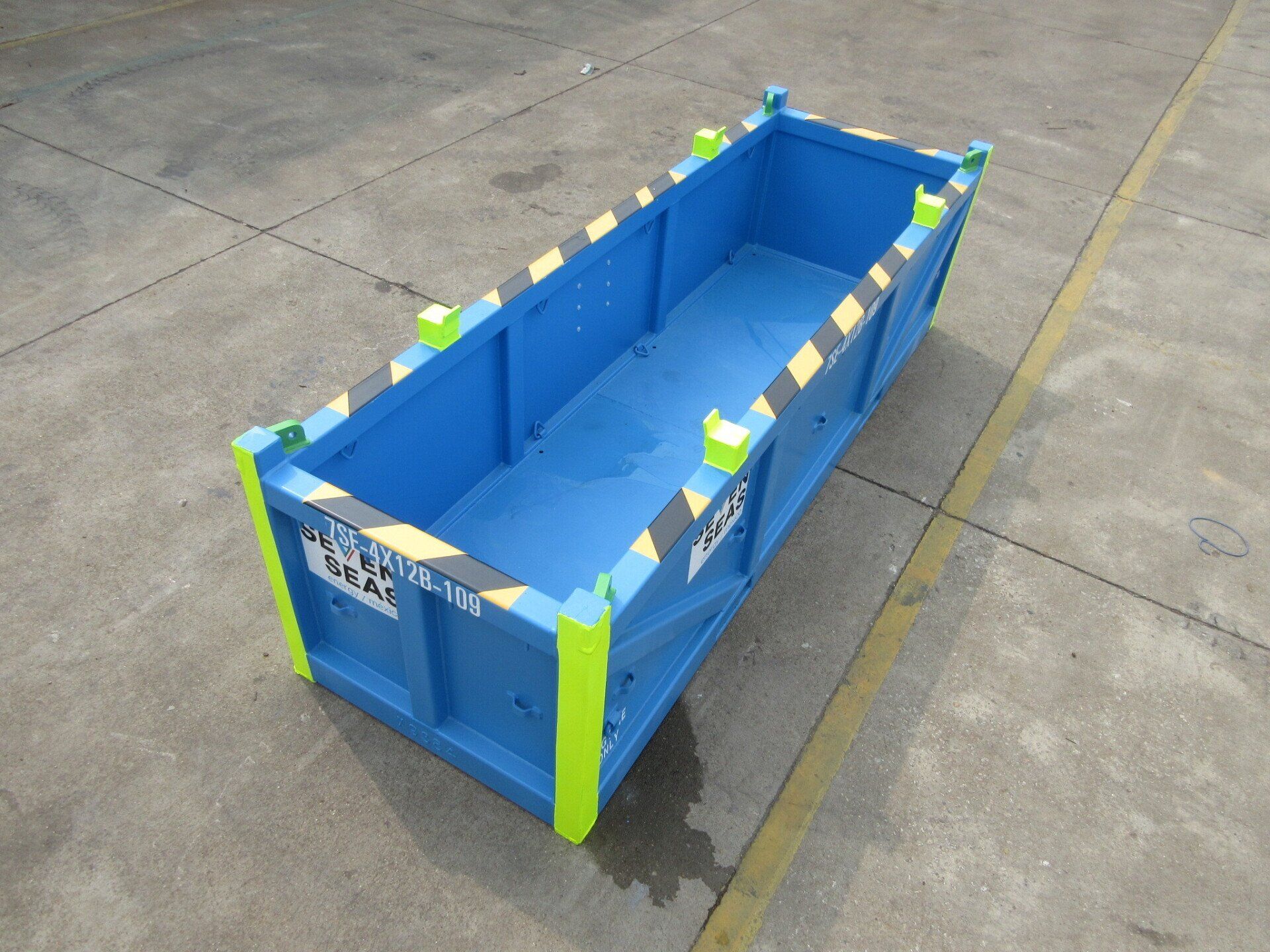

| 12ft cargo basket - blue top coat | 4 | 3658 x 1200 x 1100 (high) | 12'02 x 3'11" x 3'6" (high) | 1,100 | 2,425 | 6,000 | 15,650 |
| 47ft (14.3m) cargo basket (bolted type) - blue top coat | 3 | 14300 x 1200 x 1150 (high) | 46'10" x 3'11" x 3'9" (high) | 3,450 | 7,610 | 12,000 | 26,450 |
| 47ft (14.3m) cargo basket - HDG coating | 1 | 14300 x 1200 x 1200 (high) | 46'10" x 3'11" x 3'11" (high) | 3,930 | 8,660 | 12,000 | 26,450 |
Notes:
The 10ft and 20ft workshops are currently built as shells only. Exact specifications will be agreed with the client.
The photos of completed workshops show typical configurations and are for illustrative purposes only.
Availability for all unit types is stated as of the date of publication.
